Series: A-Series (Advanced)

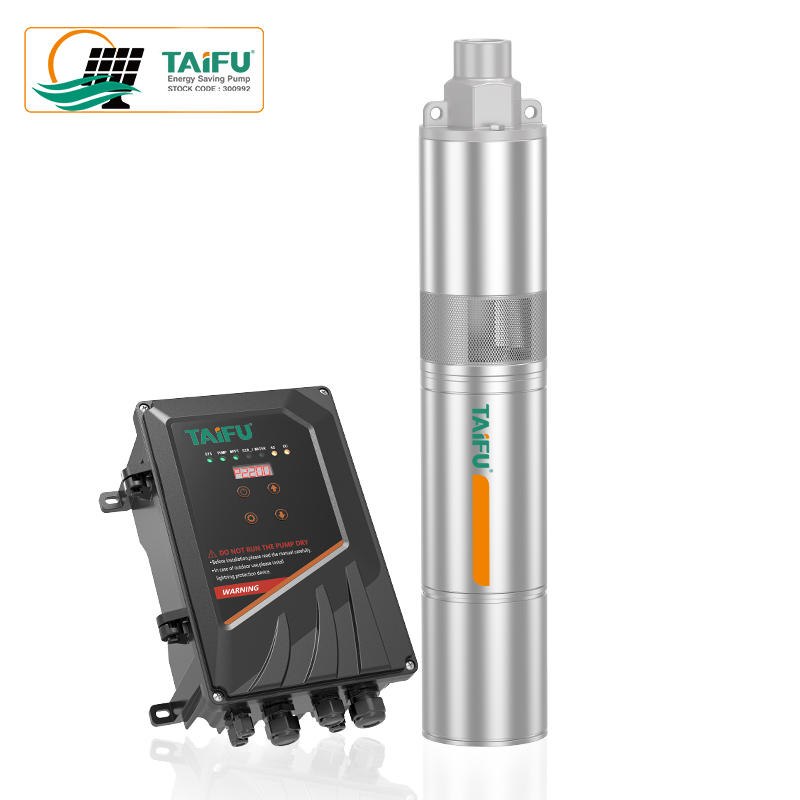

Full Name: 3SW – WATER FILLED MOTOR AC/DC SOLAR PUMP (NEW)
Product Type: Water Filled Motor AC/DC Solar Pump (New)
Material: Stainless steel centrifugal pump
Number of Models: 24 power options from 200W to 1800W
────────────────────────────────────────
Product Description
This solar powered water pump features a permanent magnet brushless double-shielded motor with FOC (Field-Oriented Control) for quiet, efficient operation.
It includes multiple intelligent protections: no-load, reverse rotation, overload/underload, over-temperature, over-current, over-voltage, phase loss, and locked rotor. The soft start function extends system life, and AC/DC wide voltage (DC60-430V or AC100-265V) allows flexible power sources. The DC side MPPT efficiency exceeds 99%, maximizing solar harvest.
Constructed with Stainless steel centrifugal pump, this solar water pump ensures exceptional durability and corrosion resistance for long-term operation. The permanent magnet brushless motor with FOC technology delivers high efficiency and precise control, while the MPPT function achieves over 99% efficiency for optimal solar energy utilization.
As a reliable solar pump, the 3SW series incorporates comprehensive protection features including dry-run protection, reverse polarity protection, overload/underload protection, over-temperature protection, over-current protection, over-voltage protection, and phase-loss protection. These safety mechanisms ensure stable operation even in challenging environments.
The wide AC/DC voltage input provides flexibility for both solar-direct and hybrid power installations. This solar powered water pump is widely used for water supply in remote areas without electricity, including livestock watering, agricultural irrigation, and domestic water supply.
Trusted by water pump manufacturers and distributors worldwide, the 3SW solar irrigation pump operates in liquid temperatures from 0°C to +40°C with a pH tolerance of 5-9. Its robust construction and comprehensive protection make it an ideal choice for sustainable water management projects.
────────────────────────────────────────
Key Advantages
- Easy installation
- No-load protection
- Reverse rotation protection
- Overload/Underload protection
- Over-temperature protection
- Over-current protection
- Over-voltage protection
- Phase loss protection
- Locked rotor protection
- Permanent magnet brushless double-shielded motor with FOC function
- Soft start function extends system life
- AC/DC wide voltage: DC60-430V or AC100-265V
- DC part MPPT function efficiency >99%
Working Conditions
| Power Range | 200W-1800W |
| Input Voltage | DC:60-430V, AC:100-265V |
| Insulation Class | F class |
| Liquid Temperature | 0°C ~ +40°C |
| Current Range | 1.5-14A |
| Speed Range | 3CW:5000rpm, 3SW:3600rpm |
| PH Value | 5-9 |
| Max. Sand Content | 50g/m³ |
| Input Voltage | Not exceeds 450Voc |
Applications
Widely used for water supply in remote areas without electricity, such as livestock watering, irrigation, drinking and cooking water supply
