Series: A-Series (Advanced)

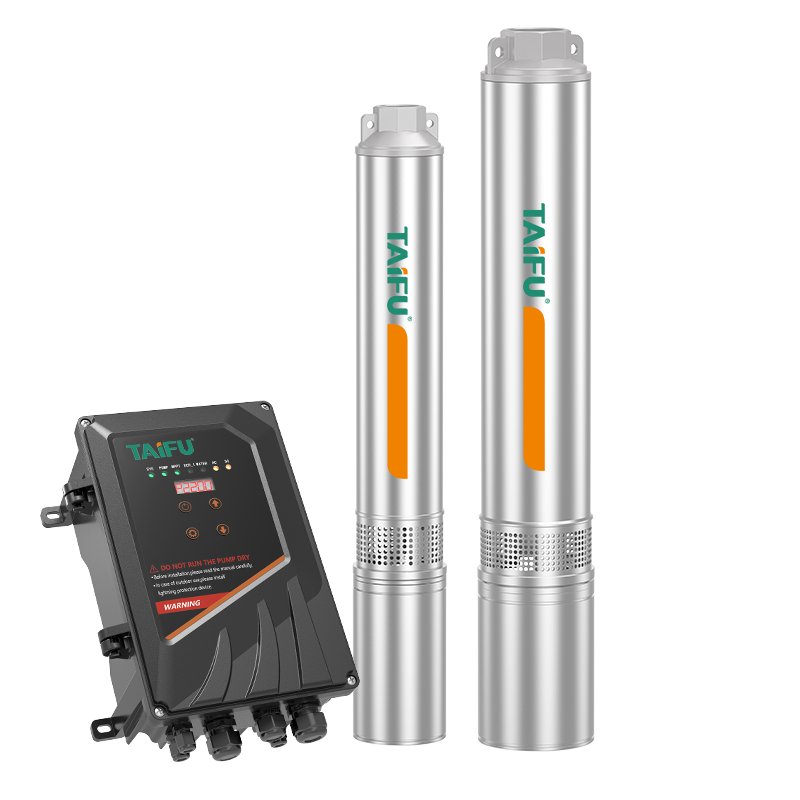

Full Name: 4CW – WATER FILLED MOTOR AC/DC SOLAR PUMP
Product Type: Water Filled Motor AC/DC Solar Pump
Material: Stainless steel centrifugal pump, SS impeller, thrust bearing
Number of Models: 50 options, power 200W-2200W
────────────────────────────────────────
Product Description
This solar powered water pump includes all protections of the 3SW plus AC side PFC function (power factor >0.99). The permanent magnet brushless double-shielded motor with FOC, soft start, and MPPT (>99%) ensures high efficiency. Wide voltage input (DC60-430V or AC100-265V) allows versatile installation.
As a versatile solar pump and solar water pump, it excels in solar irrigation pump for farmland, solar water pump irrigation systems, and solar water pumps for wells. It can be configured as a solar motor pump, solar swimming pool pump, or solar powered pool pump. Its submersible design makes it a solar powered submersible pump and solar submersible pump for deep wells, also serving as a solar water well pump and solar borewell pump. Pair with a solar panel for pool pump for residential use. As a dc submersible pump and dc solar pump, it provides reliable submersible solar water pump performance. Backed by experienced water pump manufacturers, the solar pump price is competitive. Working conditions: speed 500-4500rpm, IP68, class F insulation. Ideal for remote water supply (livestock, irrigation, drinking/cooking).
────────────────────────────────────────
Key Advantages
- Water filled motor
- Permanent magnet technology
- FOC control
- Easy installation
- No-load protection
- Reverse rotation protection
- Overload/Underload protection
- Over-temperature protection
- Over-current protection
- Over-voltage protection
- Phase loss protection
- Locked rotor protection
- Permanent magnet brushless double-shielded motor with FOC function
- Soft start function extends system life
- AC/DC wide voltage: DC60-380V or AC90-240V/50Hz,60Hz
- DC part MPPT function efficiency >99%
- AC part PFC function power factor >0.99
- Optional AC/DC switch for automatic switching
Working Conditions
| Power Range | 550W-2200W |
| Input Voltage | DC:60-380V, AC:90-240V/50Hz,60Hz |
| Protection Class | IP68 |
| Insulation Class | F Class |
| Liquid Temperature | 0°C ~ +40°C |
| Current Range | 1.5-14A |
| Speed Range | 500-4500rpm |
| PH Value | 5-9 |
| Max. Sand Content | 50g/m³ |
| Input Voltage | Not exceeds 450Voc |
Applications
Widely used for water supply in remote areas without electricity, such as livestock watering, irrigation, drinking and cooking water supply. Optional AC/DC switch, connect water level sensor for automatic control
